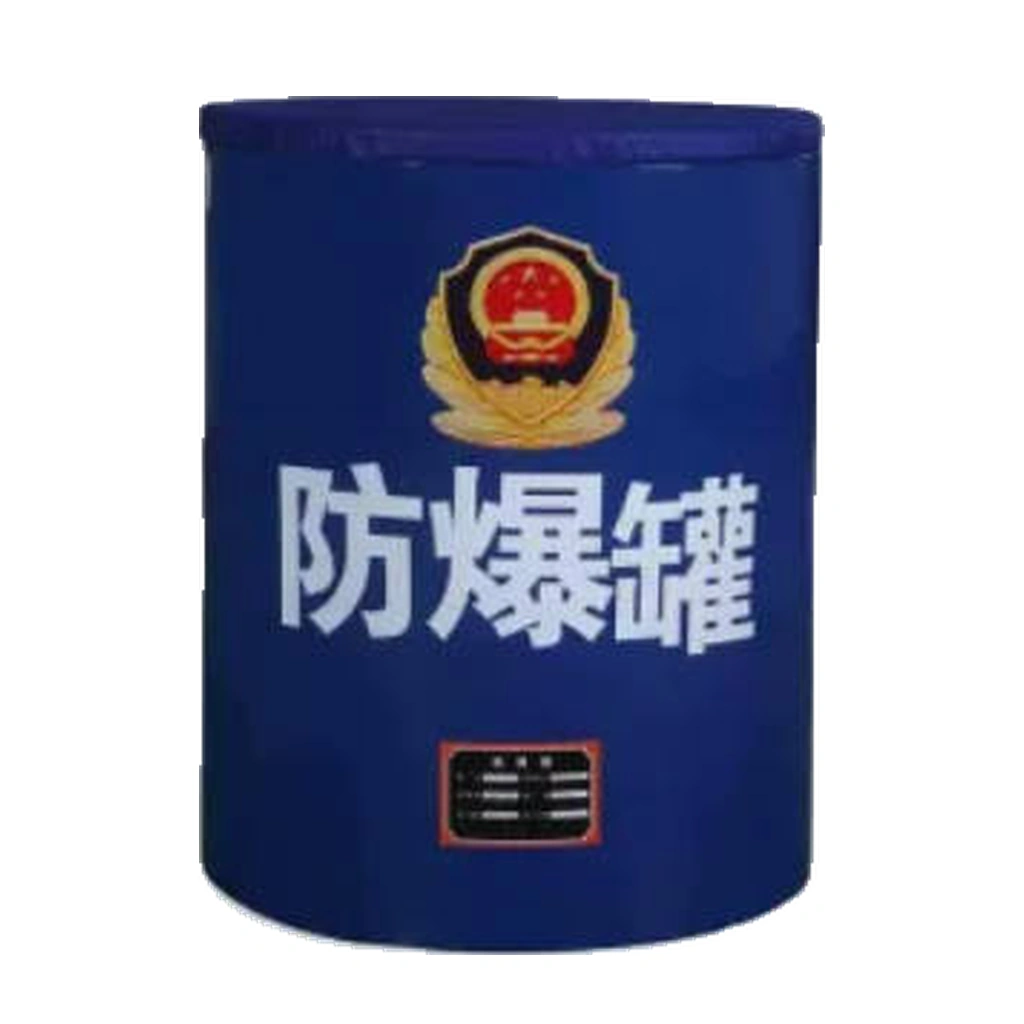

FBG-G1.5 Type I Single-Layer Explosion-Proof Tank
The FBG-G1.5 Type I is a state-of-the-art single-layer explosion-proof tank developed through years of dedicated research and multiple live blast tests. It is a critical safety device designed for the temporary isolation, storage, and disposal of explosive materials. By preventing the horizontal spread of shock waves and shrapnel, it neutralizes threats to surrounding personnel, valuable instruments, cultural relics, and public infrastructure.
Description
Product Description
The physical construction of the FBG-G1.5 Type I is engineered for uncompromising durability and rapid deployment.
-
Heavy-Duty Construction: The tank is manufactured using high-strength, impact-resistant carbon steel plates.
-
Thickened Defense: It features a robust wall thickness of 15mm, welded together using specialized techniques to ensure superior explosion-venting performance.
-
Internal Stabilization: The interior of the tank is fitted with a specialized net bag to ensure the stable and secure placement of suspicious items during transport.
-
Rapid Mobility: The bottom of the outer tank is equipped with four universal wheels, allowing security teams to quickly move and transport the heavy unit during emergencies.
Design Principles & Safety Mechanisms
This product strictly executes the national “GA 871-2010 Explosion-proof tank” standard and relies on advanced physical containment principles.
-
Blast Containment: The structure is proven to effectively block the devastating destructive effects generated by a 1.5KG TNT high-explosive detonation.
-
Horizontal Threat Elimination: The core safety mechanism works by completely preventing the horizontal diffusion of shock waves and fragmented shrapnel post-explosion.
-
Acoustic & Pressure Considerations: While the tank possesses sound-muffling and blast-containment capabilities, detonations at close range or indoors will still generate a very loud noise.
-
One-Time Deployment: To guarantee absolute structural integrity, the explosion-proof tank must not be reused once an actual explosion has occurred inside it.
Operational & Environmental Guidelines
To safely utilize the physical venting mechanics of the tank, operators must adhere to strict spatial and maintenance rules:
-
Vertical Clearance: The tank must be positioned in an area with a clear overhead space of 6 meters or more. It must be placed away from load-bearing beams, chandeliers, or any overhead fixtures that could be damaged and transformed into hazardous flying debris.
-
Evacuation Radius: During an active disposal or detonation event, all personnel must maintain a safe distance of at least 4 meters and actively protect their eardrums.
-
Disposal Protocol: When destroying explosives, the detonator and wires must be routed through the dedicated destruction hole, and detonation must only be triggered by Explosive Ordnance Disposal (EOD) professionals after all personnel have evacuated to a safe zone.
-
Routine Maintenance: Unused tanks require regular oiling of their moving parts to prevent rusting, and the interior and pressure relief cover must be promptly cleared of debris to ensure optimal readiness.
Parameter Index
| Model | Antiknock Equivalent (TNT) | Outer Diameter (mm) | Inner Diameter (mm) | Net Height (mm) | Wall Thickness (mm) | Total Weight (kg) |
| FBG-G1.5 Type I | 1.5 kg | 630 | 600 |
