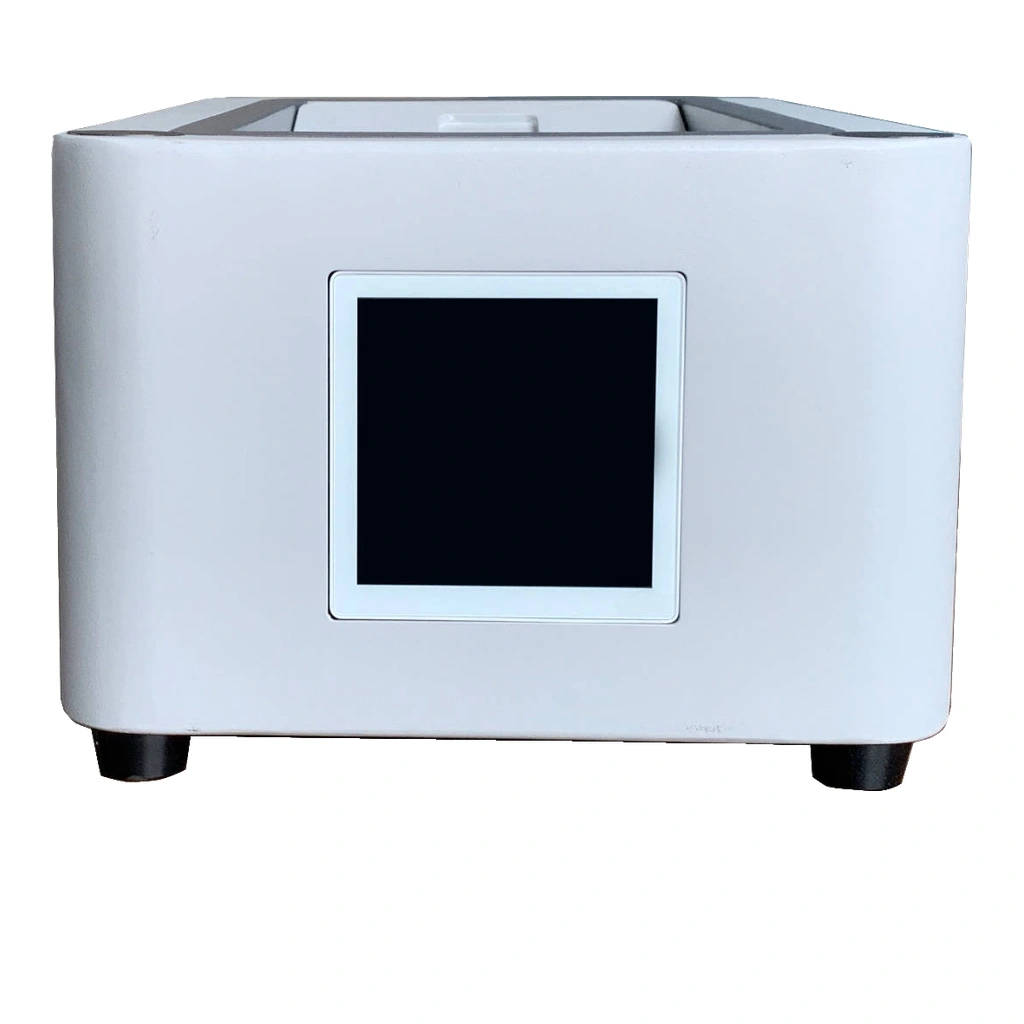

AS-1800 Bench-top Dangerous Liquid Detector

Description

Product Overview

The AS-1800 Bench-top Dangerous Liquid Detector is a fully self-developed liquid safety screening system that combines Ultra-Wideband (UWB) pulse microwave reflection with thermal conductivity analysis. It automatically identifies flammable, explosive and corrosive liquids through sealed containers — with zero radiation output, making the screening process completely safe for operators, bystanders and the items being checked.

Designed for high-traffic security environments, the AS-1800 screens non-metal containers (plastic, glass and ceramic, 30–200 mm in diameter) by side-wall measurement in just 1 second, without ever opening the bottle. It reliably detects low-concentration alcohol such as 52° liquor as well as gasoline, kerosene, diesel, ether and 40+ other flammable and corrosive liquids. From railway stations and metro lines to government buildings and sports venues, the AS-1800 is the essential line of defense against dangerous liquids entering secure areas.

Technical Specifications

Technology: Ultra-Wideband (UWB) pulse microwave reflection + thermal conductivity analysis; radiation-free

Detectable liquid types: Flammable, explosive and corrosive dangerous liquids (40+ types)

Low-concentration detection: Detects low-alcohol liquids such as 52° liquor and gel-like liquids

Container compatibility: Plastic, glass and ceramic containers; 30 mm ≤ diameter ≤ 200 mm

Detection method: Side-wall measurement — no need to open the container

Detection time: 1 s (insulated containers)

Startup time: 1.0 s, no warm-up required

Self-calibration time: 1.0 s

Display: HD LCD touchscreen with tempered glass panel; waterproof and dustproof

Alarm: Red danger icon with continuous buzzer; green safe icon with short beep; audio alarm can be disabled

Auto counting: Yes

Identity verification: Yes

User interface: Built-in illumination; parameters adjustable via touchscreen

Dimensions: 320 × 230 × 190 mm (L × W × H)

Weight: ≤ 6.8 kg

Power consumption: 8 W

Power supply: AC 180–240V, 50/60 Hz

Operating temperature/humidity: 15℃ ~ 35℃ / 5% ~ 95% RH (non-condensing)

Storage temperature/humidity: -40℃ ~ 60℃ / 5% ~ 95% RH (non-condensing)

Product Features

Eco-Friendly & Safe Screening

• Radiation-free — UWB microwave and thermal conductivity analysis pose no harm to people or goods.
• Non-invasive — Side-wall detection through sealed containers — no need to open or pour liquids.

Wide Detection Coverage

• 40+ dangerous liquids — Gasoline, kerosene, diesel, ether and other flammable and corrosive liquids.
• Low-alcohol detection — Reliably identifies low-concentration alcohol such as 52° liquor and gel-like liquids.

Ultra-Fast Throughput

• 1-second detection — Rapid screening of non-metal bottles keeps passenger queues moving.
• Instant startup — 0 s boot with self-calibration — no warm-up, always ready to use.

Operator-Friendly Design

• Intuitive interface — HD touchscreen with clear red/green alarm indication for instant judgment.
• Flexible alarms — Audible, visual and on-screen alarms; sound can be muted when required.
• Smart functions — Auto counting, identity verification and touchscreen parameter adjustment.

Applications

Transportation Hubs

• Railway stations, metro lines and airport terminals
• Bus terminals and ferry checkpoints

Government & Public Facilities

• Government buildings and courthouses
• Stadiums, schools, hospitals and other high-traffic public venues

Event Security

• Concerts, exhibitions and large gatherings
• Important meetings and summits
