Description

Product Overview

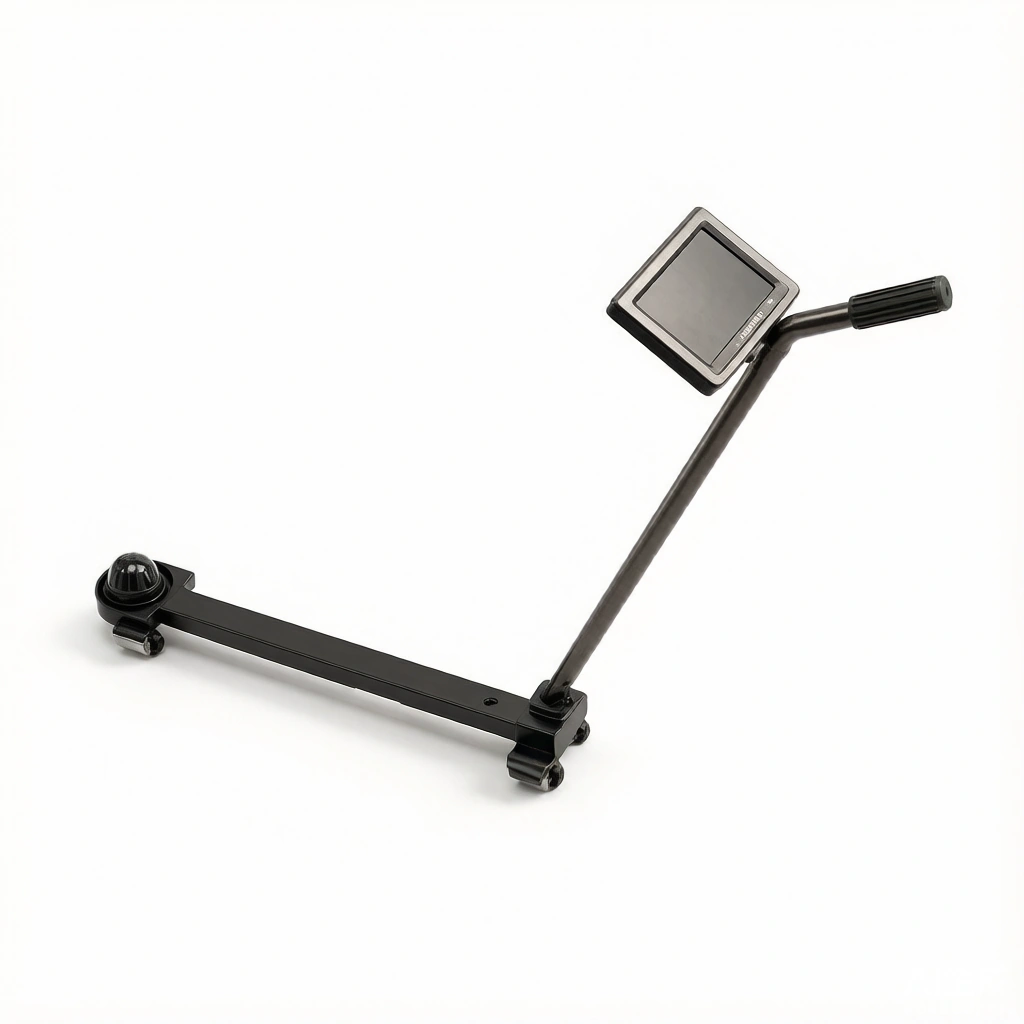

The AS-UVSS-V1 Portable Under-Vehicle Video Inspection System is a self-developed handheld visual screening solution from Shenzhen Ansa Technology. Designed for rapid inspection of vehicle undercarriages and other hard-to-reach spaces, it combines a wide-angle camera head with a 7-inch color display to let security personnel clearly see suspicious objects, structural modifications, stowaways or contraband hidden beneath vehicles without bending or crawling.

With a 355° horizontal panning range, ≤1.0 s startup time and 8 hours of continuous operation on a single charge, the AS-UVSS-V1 is ready for extended field use. Weighing only 3.4 kg and operating reliably from -20℃ to +60℃, it is ideal for mobile checkpoints, vehicle entrances, customs lanes and emergency response teams that need fast, flexible under-vehicle screening.

Technical Specifications

Model: AS-UVSS-V1

Brand: ANSA

Camera field of view: Wide-angle

Horizontal rotation: 355° max / 22.5° min

Focal length: 3.6 mm

Display: 7-inch color LCD

Display resolution: 800 × 480 (RGB)

Startup time: ≤ 1.0 s

Battery capacity: 5200 mAh

Working voltage: 9–12.6 V

Power consumption: 6800 mW

Continuous working time: 8 hours

System weight: 3.4 kg

Operating temperature: -20℃ ~ +60℃

Product Features

Flexible Visual Coverage

• Wide-angle lens — 3.6 mm focal length delivers a broad field of view under vehicles and inside confined spaces.
• 355° horizontal rotation — Large panning range lets operators inspect corners, wheel arches and chassis rails without repositioning the unit.

Rapid Field Deployment

• Instant startup — Boots in ≤1.0 s so officers can begin screening immediately.
• All-day battery — 5200 mAh battery supports up to 8 hours of continuous inspection.
• Lightweight system — At only 3.4 kg, the unit is easy to carry and operate for extended shifts.

Clear On-Screen Operation

• 7-inch color display — 800 × 480 RGB resolution provides a bright, detailed view of the inspection area.
• Intuitive controls — Simple pan/tilt operation reduces training time and keeps screening workflows moving.

Built for Demanding Environments

• Wide temperature range — Reliable performance from -20℃ to +60℃ for year-round outdoor use.
• Low-voltage DC power — 9–12.6 V operating range supports battery and vehicle adapter options.

Applications

Transportation & Border Security

• Vehicle checkpoints at ports, customs and border crossings
• Airport and railway station vehicle entrances
• Temporary security lanes for high-traffic events

Government & Law Enforcement

• Prison and detention facility vehicle inspections
• Government building and embassy parking control
• Police mobile patrol and anti-terrorism screening

Critical Infrastructure

• Power plants and energy facility vehicle gates
• Military restricted zones and armory access points
• Industrial sites requiring visitor vehicle checks

Confined-Space Inspection

• Under desks, beds, filing cabinets and storage units
• Elevated platforms, pipes, vertical shafts and pipe interiors
• Dark enclosures, tree clusters and other human-inaccessible areas
