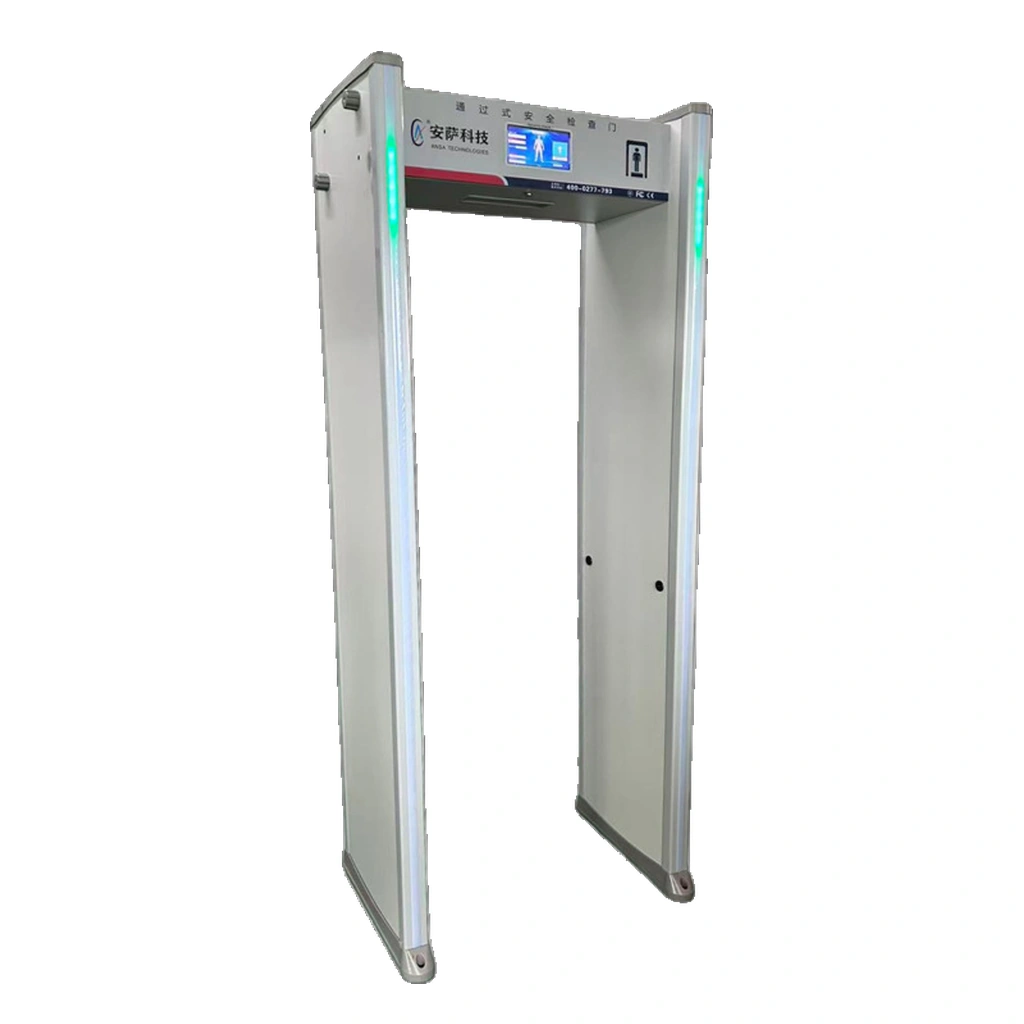

AS-300DP6 6-Zone Walk-Through Metal Detector

AS-300DP6 6-Zone Walk-Through Metal Detector

The ANSA AS-300DP6 is a premium 6-zone walk-through metal detector equipped with a user-friendly 7-inch LCD interface. Utilizing advanced overlapping detection technology, it provides precise pinpointing of concealed metal items while allowing for 255 levels of sensitivity adjustment per zone. Capable of filtering out harmless personal items and operating with excellent anti-interference stability, it is an ideal security solution for modern facilities demanding both high accuracy and operational convenience.

Categories: ,

Description

Product Overview

The AS-300DP6 6-Zone LCD Walk-Through Metal Detector combines intuitive operation with robust security screening capabilities. Featuring an upgraded 7-inch LCD screen with a bilingual menu system, this model simplifies configuration and monitoring for security personnel. The system utilizes 6 overlapping detection zones that accurately identify the specific location of metal objects across the left, right, and center sections of the human body.

Engineered for high-traffic environments, the AS-300DP6 boasts 255 selectable sensitivity levels, enabling it to detect items as small as a single paperclip while intelligently ignoring harmless personal items like belt buckles, keys, and coins. Backed by digital and analog balancing technology, it offers superior resistance to environmental interference. Fully compliant with rigorous international standards (including EN60950 and GB15210), this detector ensures reliable, safe, and efficient screening for a wide range of security applications.

Product Features

Advanced Detection Technology

  • 6 Overlapping Detection Zones: The body is divided into 6 overlapping zones that eliminate detection blind spots. When multiple metal items are present, the system triggers simultaneous alarms to accurately map out the distribution of threats.

  • Ultra-High Sensitivity: Each of the 6 zones features 255 adjustable sensitivity levels. At its maximum setting, the detector can easily identify minute threats such as paperclips or small controlled knives.

  • Smart Object Filtering: Operators can pre-set the target object’s estimated size and weight, allowing the system to intelligently bypass harmless items (e.g., jewelry, coins, and keys) to significantly reduce false alarms.

Operational Efficiency

  • 7-Inch LCD & Bilingual Menu: A high-visibility 7-inch LCD screen provides a modern, user-friendly interface with built-in English and Chinese language options, accommodating diverse operational environments.

  • Visual LED Alarm Indicators: Built-in LED light bars on both the left and right door pillars intuitively display the exact height and horizontal position (left, right, or center) of the concealed contraband.

  • Advanced Statistics Tracking: The digital panel clearly displays the total passenger throughput, the number of alarm events, the specific alarm zone, and the signal intensity.

  • Remote Control Support: Operators can adjust parameters directly via the control panel or conveniently manage the gate using the included remote control.

Comprehensive Security Features

  • Password Protection: System configurations and parameter modifications are secured by a password, ensuring only authorized administrators can alter the device settings.

  • Superior Anti-Interference: Incorporates advanced digital, analog, and left/right balance technologies. Security teams can adjust the operating frequencies to install multiple detector gates side-by-side without mutual signal interference.

  • Customizable Audio-Visual Alarms: Offers a variety of distinct sound and light alarm configurations, allowing security personnel to easily recognize alerts in noisy environments.

System Flexibility & Durability

  • Quick & Easy Setup: Features a highly integrated structural design. Installation or complete dismantling can be achieved in just 20 minutes with the included user manual.

  • Guaranteed Health & Safety: Completely harmless to the human body, ensuring total safety for pregnant women, individuals with pacemakers, floppy disks, and magnetic media.

  • International Compliance: Strictly adheres to top-tier safety and operational standards, including EN60950 (Safety), EN50081-1 (Radiation), EN50082-1 (Anti-interference), and the GB15210 national standard.

Application Area

Equipped with a highly intuitive screen and accurate detection capabilities, the AS-300DP6 is highly recommended for:

  • Public Venues & Events: Exhibition centers, museums, and sports stadiums requiring smooth and efficient throughput.

  • Industrial Protection: Electronics manufacturing and hardware plants looking to prevent the theft of small metal components.

  • Corporate & Commercial Facilities: High-end office buildings, banks, and corporate headquarters prioritizing both security and aesthetics.

  • Educational Institutions: Universities and schools where safe, reliable, and user-friendly security screening is required.

Technical Specifications

Feature Specification
Power Supply 90V – 250V AC, 50/60Hz
Power Consumption < 35W
Operating Environment -20°C to +45°C
Operating Frequency Adjustable based on installation environment
External Dimensions 2200mm (H) × 820mm (W) × 550mm (D) (including foot covers)
Passage Dimensions 2000mm (H) × 700mm (W) × 500mm (D)
Control Unit Packaging 800mm × 460mm × 260mm
Door Panel Packaging 2300mm × 620mm × 200mm
Machine Weight Approximately 50 kg (Gross Weight)
Transport Weight Approximately 70 kg
Compliance Standards GB15210, EN60950, EN50081-1, EN50082-1
