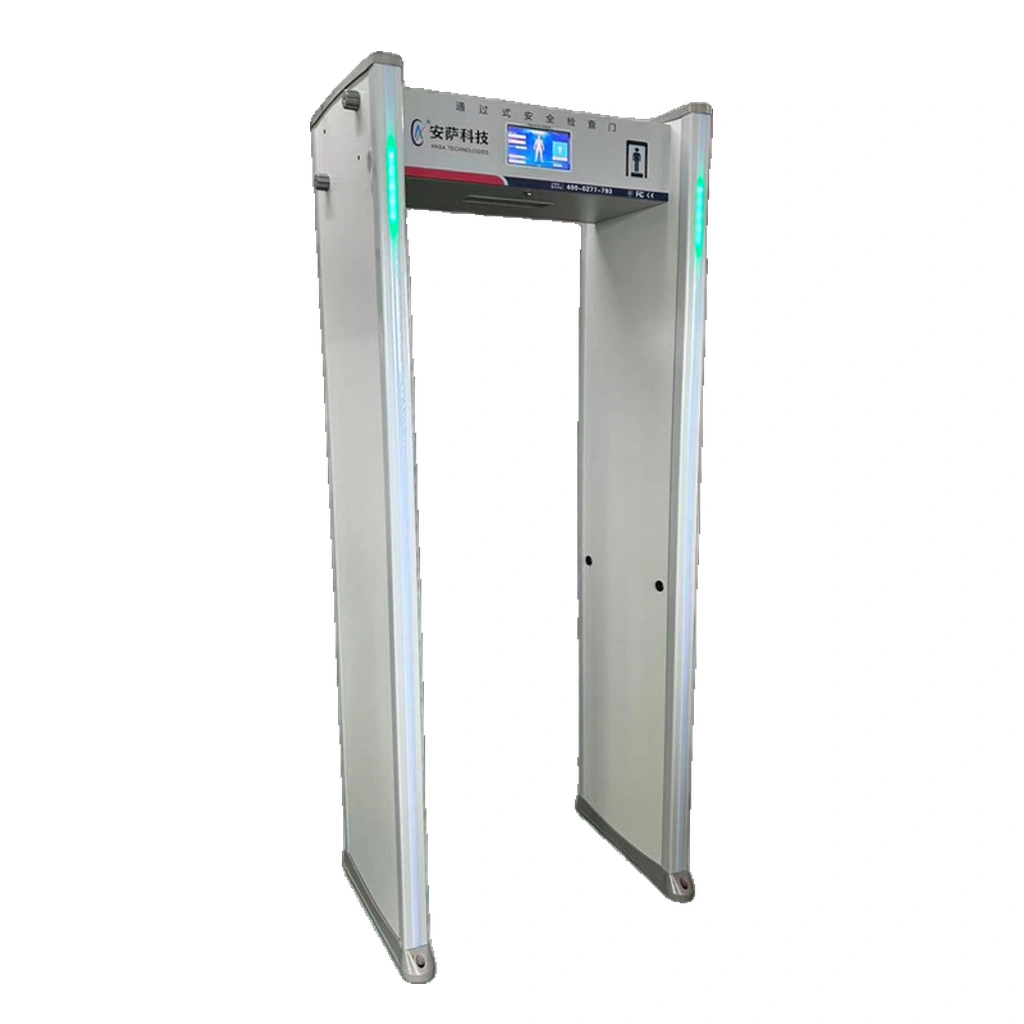

AS-300DP18 Walk-Through Metal Detector with 7-Inch LCD Screen

AS-300DP18 Walk-Through Metal Detector with 7-Inch LCD Screen

The ANSA AS-300DP18 is a high-performance 18-zone walk-through metal detector featuring a modern 7-inch LCD interface. Engineered with advanced overlapping detection technology, it offers exceptional pinpoint accuracy to locate threats across the left, right, and center of the body. With 255 adjustable sensitivity levels per zone and the flexibility to switch detection modes, it perfectly balances maximum security with high passenger throughput, making it ideal for demanding security environments.

Categories: ,

Description

Product Overview

The AS-300DP18 Walk-Through Metal Detector sets a superior standard in pedestrian screening by delivering multi-target pinpoint accuracy and intuitive operation. Featuring a 7-inch LCD screen with a bilingual interface, this system divides the body into 18 overlapping detection zones. This allows security personnel to instantly and accurately identify the exact location of concealed metal objects, drastically reducing secondary manual screening time.

Designed for ultimate operational flexibility, the AS-300DP18 allows operators to easily toggle between detection configurations to adapt to varying threat levels. Each of its 18 zones offers 255 levels of sensitivity, capable of detecting items as small as a paperclip while intelligently filtering out harmless personal belongings. Built with industry-leading digital and analog balancing technologies for superior anti-interference, and strictly complying with international safety standards (EN60950, EN50081-1, EN50082-1) and GB15211, it is a formidable security asset for any high-traffic checkpoint.

Product Features

Advanced Detection Technology

  • 18 Overlapping Detection Zones: Accurately maps the human body into 18 overlapping grids, distinguishing threats across the left, right, and center. It supports simultaneous multi-zone alarming to pinpoint multiple concealed items at once.

  • Flexible Zone Selection: Features versatile detection modes, allowing operators to switch between 18-zone and 6-zone configurations to meet specific traffic flow requirements and security protocols.

  • Ultra-High Sensitivity: Every independent zone features 255 adjustable sensitivity levels. At its peak setting, it effortlessly detects minute metallic threats like paperclips or razor blades.

  • Intelligent Object Filtering: Operators can pre-configure the system based on the estimated volume, weight, and size of potential threats. This smartly bypasses harmless items like belt buckles, keys, jewelry, and coins, ensuring false alarms are virtually eliminated.

Operational Efficiency

  • 7-Inch LCD & Bilingual Menu: A sleek, high-visibility 7-inch LCD screen provides a modern interface with built-in English and Chinese language options for effortless global deployment.

  • 180-Degree LED Alarm Indicators: Ultra-bright LED light bars embedded in both door pillars provide a visual, aesthetically pleasing display of the exact threat location at the corresponding height.

  • Advanced Statistics Tracking: The digital panel comprehensively displays total passenger throughput, total alarm events, specific alarm zones, and the intensity of the alarm signal.

  • Remote Control Support: Offers flexible management options—operators can adjust parameters via the main panel or use the included remote control for convenient operation.

Comprehensive Security Features

  • Password Protection: System configurations are strictly secured by password protection, ensuring only authorized administrators can modify sensitivity or operational settings.

  • Superior Anti-Interference: Utilizes advanced digital, analog, and left/right balancing technology to prevent false or missed alarms. Operating frequencies are adjustable, allowing multiple detector gates to work side-by-side without network interference.

  • Customizable Audio-Visual Alarms: Provides a wide selection of sound and light alarm configurations, making alerts easily identifiable in various acoustic environments.

System Flexibility & Durability

  • Rapid Assembly: Highly integrated structural design allows for complete installation or dismantling in just 20 minutes, supported by a detailed user manual.

  • Guaranteed Health & Safety: Emits safe magnetic fields that are 100% harmless to pregnant women, individuals with heart pacemakers, floppy disks, and video tapes.

  • International Compliance: Strictly adheres to top-tier safety and operational standards, including EN60950 (Electrical Safety), EN50081-1 (Radiation), EN50082-1 (Anti-interference), and the GB15211 national standard.

Application Area

With its precise pinpointing and highly customizable interface, the AS-300DP18 is perfectly suited for medium to high-security facilities:

  • Government & Justice: Courthouses, government buildings, and correctional facilities requiring stringent threat detection.

  • Transportation Hubs: Airports, railway stations, and subway networks demanding fast and accurate screening.

  • Industrial Protection: Precision manufacturing plants and electronic factories preventing the theft of small valuable components.

  • Large-Scale Events: Stadiums, concert halls, and VIP exhibition centers.

Technical Specifications

Feature Specification
Power Supply 90V – 250V AC, 50/60Hz
Power Consumption < 35W
Operating Environment -20°C to +45°C
Operating Frequency Adjustable based on installation environment
External Dimensions 2200mm (H) × 820mm (W) × 550mm (D) (including foot covers)
Passage Dimensions 2000mm (H) × 700mm (W) × 500mm (D)
Control Unit Packaging 800mm × 460mm × 260mm
Door Panel Packaging 2300mm × 620mm × 200mm
Machine Weight Approximately 50 kg (Gross Weight)
Transport Weight Approximately 70 kg
Compliance Standards GB15211, EN60950, EN50081-1, EN50082-1
